Betaflight Configurator Firmware Flashing Tutorial
Betaflight Configurator Firmware Flashing Tutorial
1.Latest Betaflight 10.10.0 stable version Configurator, no VPN required for download:
Betaflight Configurator 10.10.0: Click here, then download, extract, and install.
Download without VPN: Betaflight 10.10.0

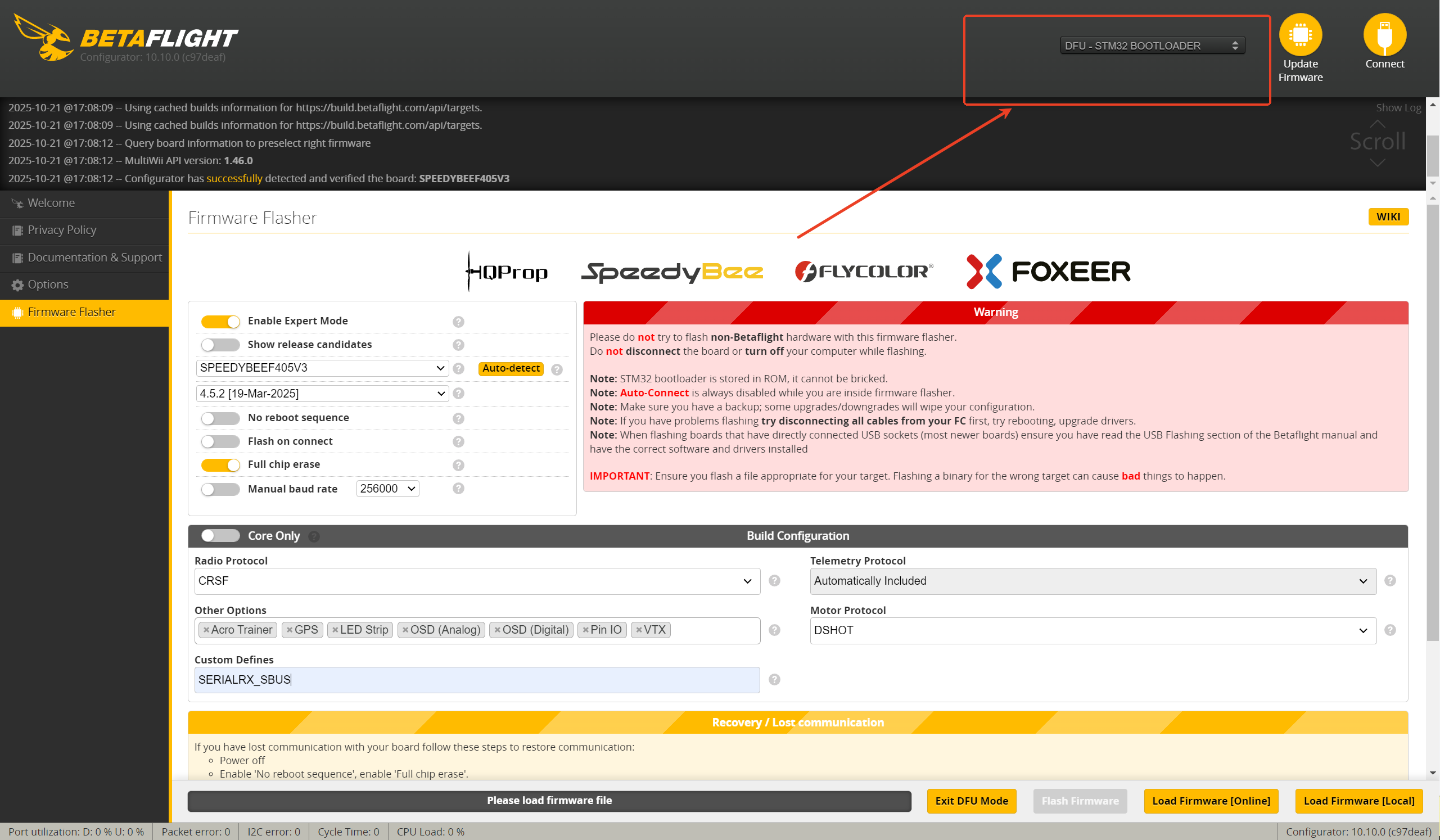

2.To flash firmware, refer to the image below and enter DFU-STM32 BOOTLOADER mode.
If DFU-STM32 BOOTLOADER is not detected in the top-right corner, refer to the article in the link below:
https://docs.speedybee.cn/fpv/fc-flight-controller/flight-controller-faq/connection.html
2.If the computer cannot connect to the flight controller, click here to download the driver installation program.

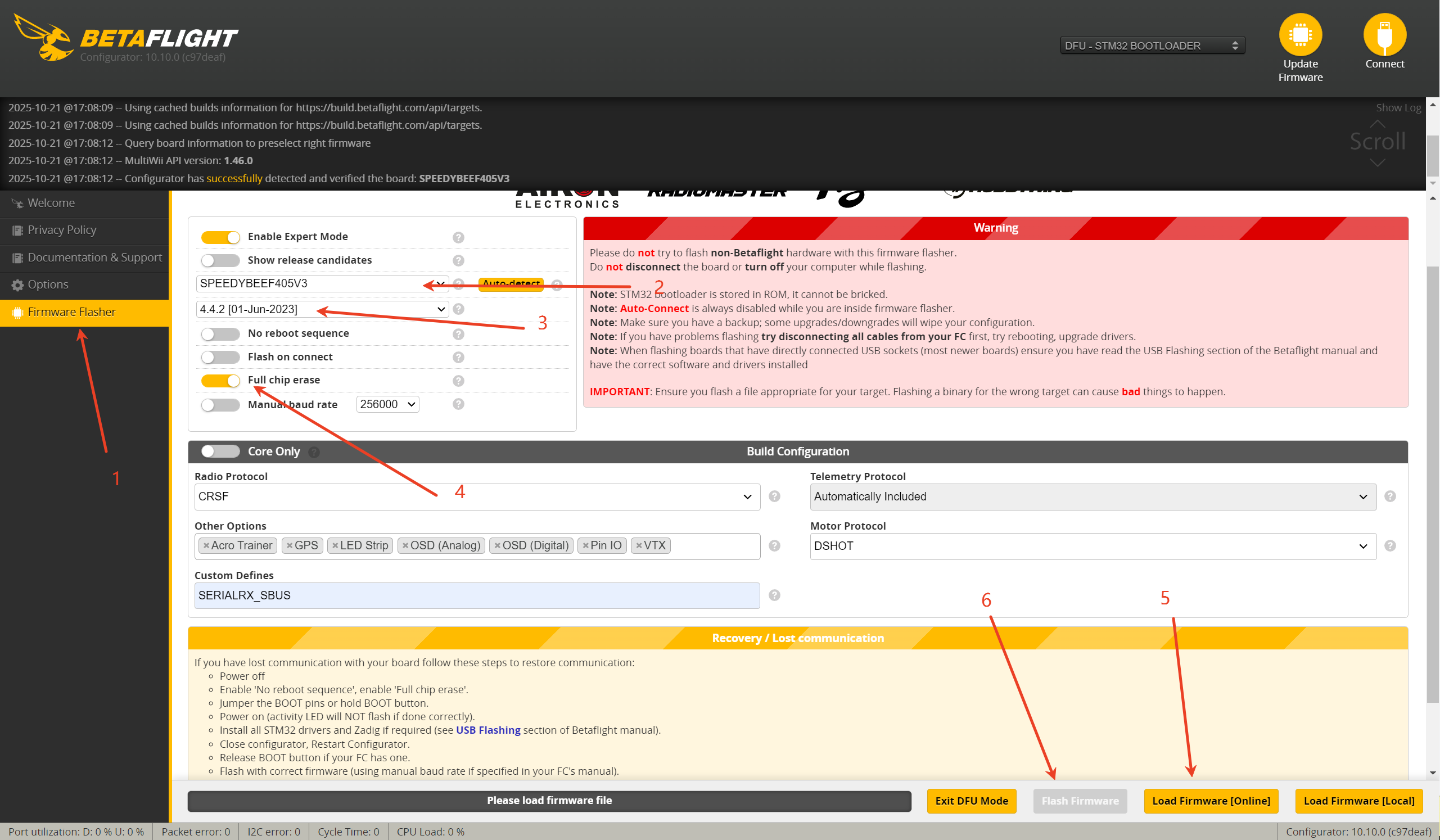

3.Betaflight Configurator Online Firmware Flashing Tutorial

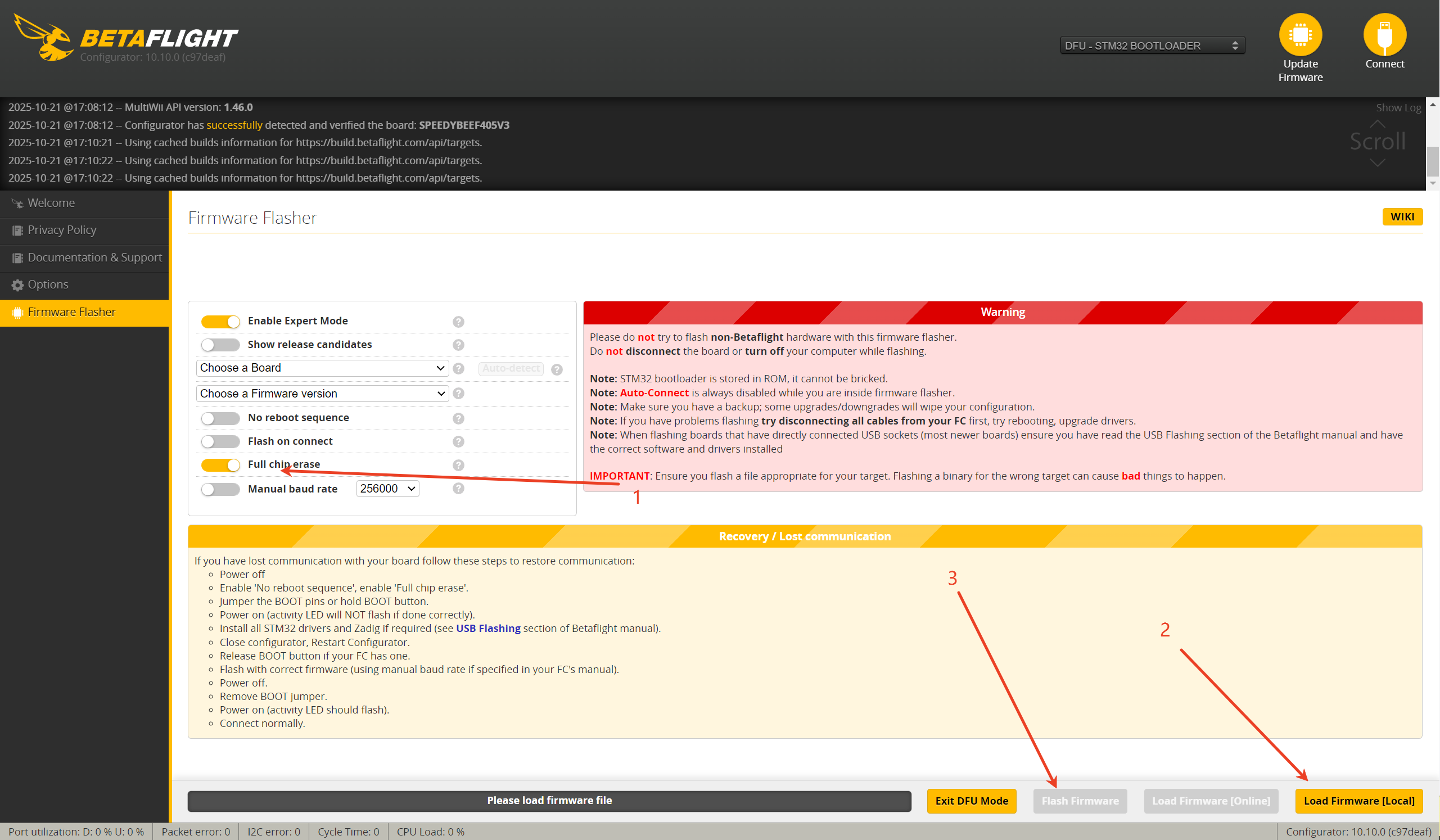

4. Betaflight Configurator Offline Firmware Flashing Tutorial – Download Flight Controller Firmware Click Here
5.After seeing the Flashing Successful message, click Connect in the top-right corner, then click Apply Custom Default Settings.

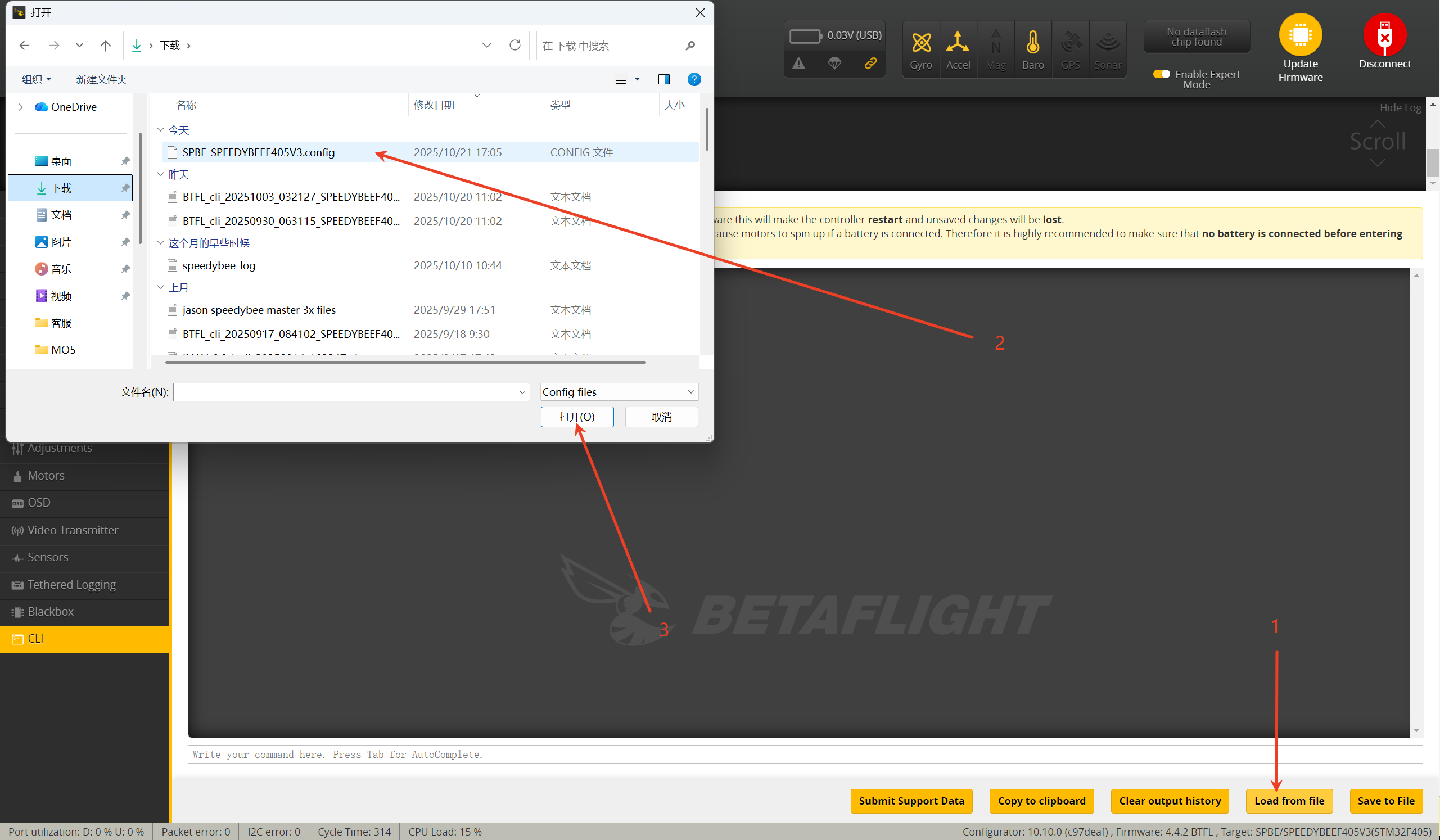

6.In the CLI command line, click Load from File, select the configuration file with the .config extension, then click Execute.
【SpeedyBee Flight Controller Betaflight Firmware Default Configuration File Download】
●SpeedyBee F405v4 Flight Controller：
●SpeedyBee F4mini Flight Controller：
●SpeedyBee F7V3 Flight Controller：
https://d18j4b7oq8p8jg.cloudfront.net/betaflight/unified_targets/SPBE-SPEEDYBEEF7V3.config
●SpeedyBee F405 V3 Flight Controller：
https://d18j4b7oq8p8jg.cloudfront.net/betaflight/unified_targets/SPBE-SPEEDYBEEF405V3.config
●SpeedyBee F745 AIO Flight Controller：
https://d18j4b7oq8p8jg.cloudfront.net/betaflight/unified targets/SPBE-SPEEDYBEE F745_AIO.config
●SpeedyBee F7 MINI V2 Flight Controller：
https://d18j4b7oq8p8jg.cloudfront.net/betaflight/unified_targets/SPBE-SPEEDYBEEF7MINIV2.config

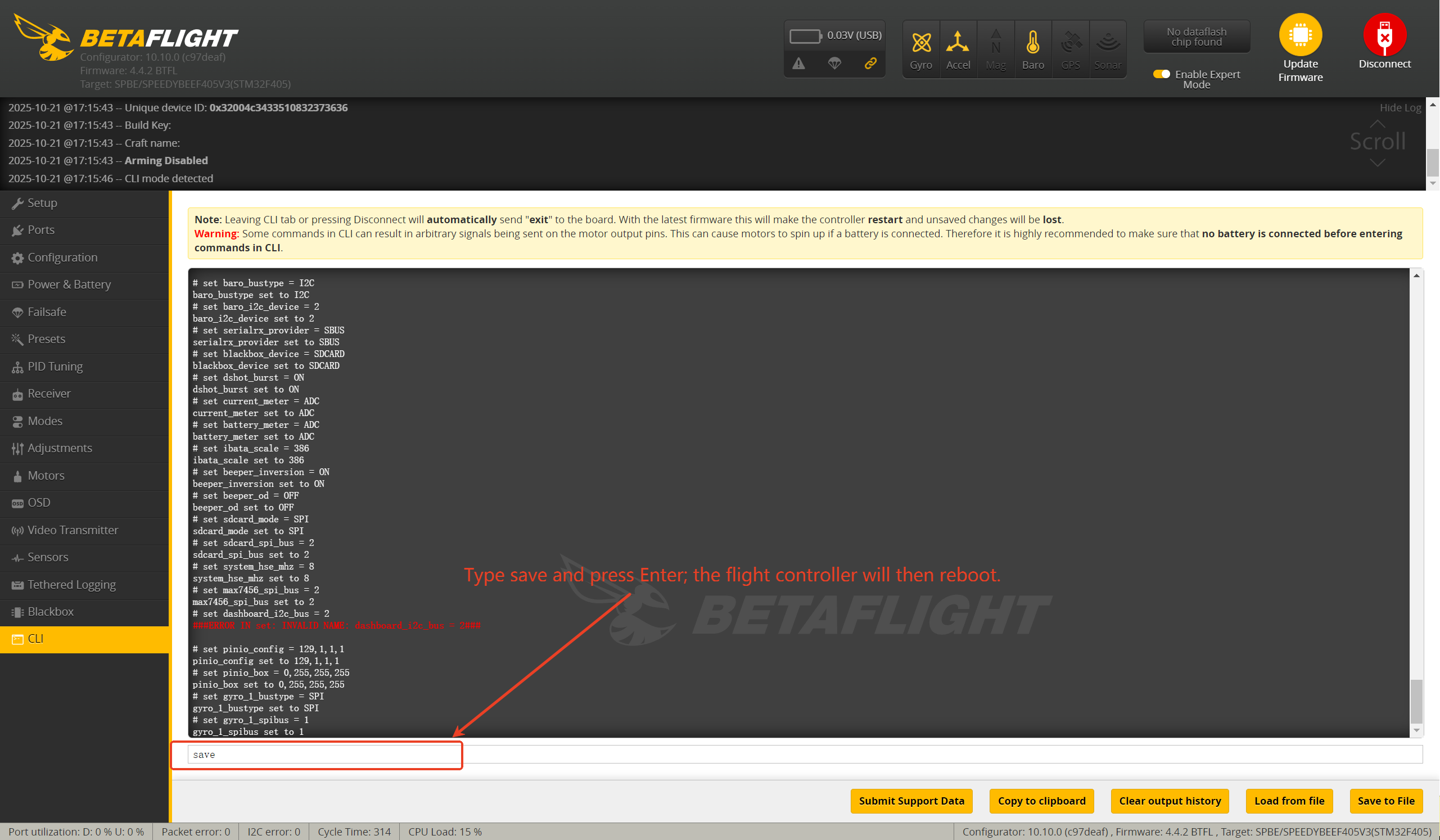

7.After the configuration file finishes loading, type save and press Enter. Wait for the flight controller to reboot, and the process is complete.
