How to enable mass storage mode and view Blackbox data

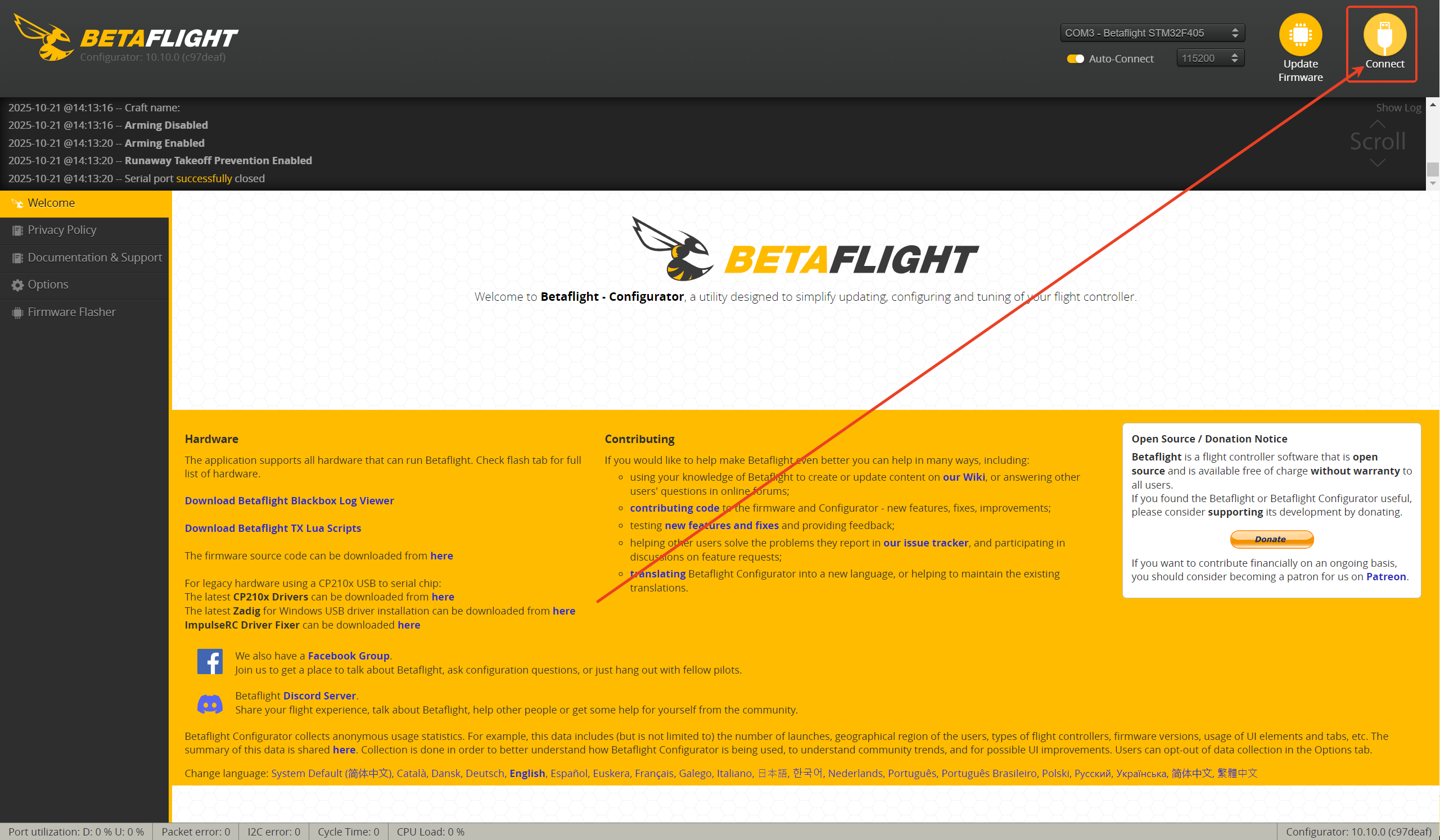

1.First, connect the flight controller to USB for power, open Betaflight, and click Connect.

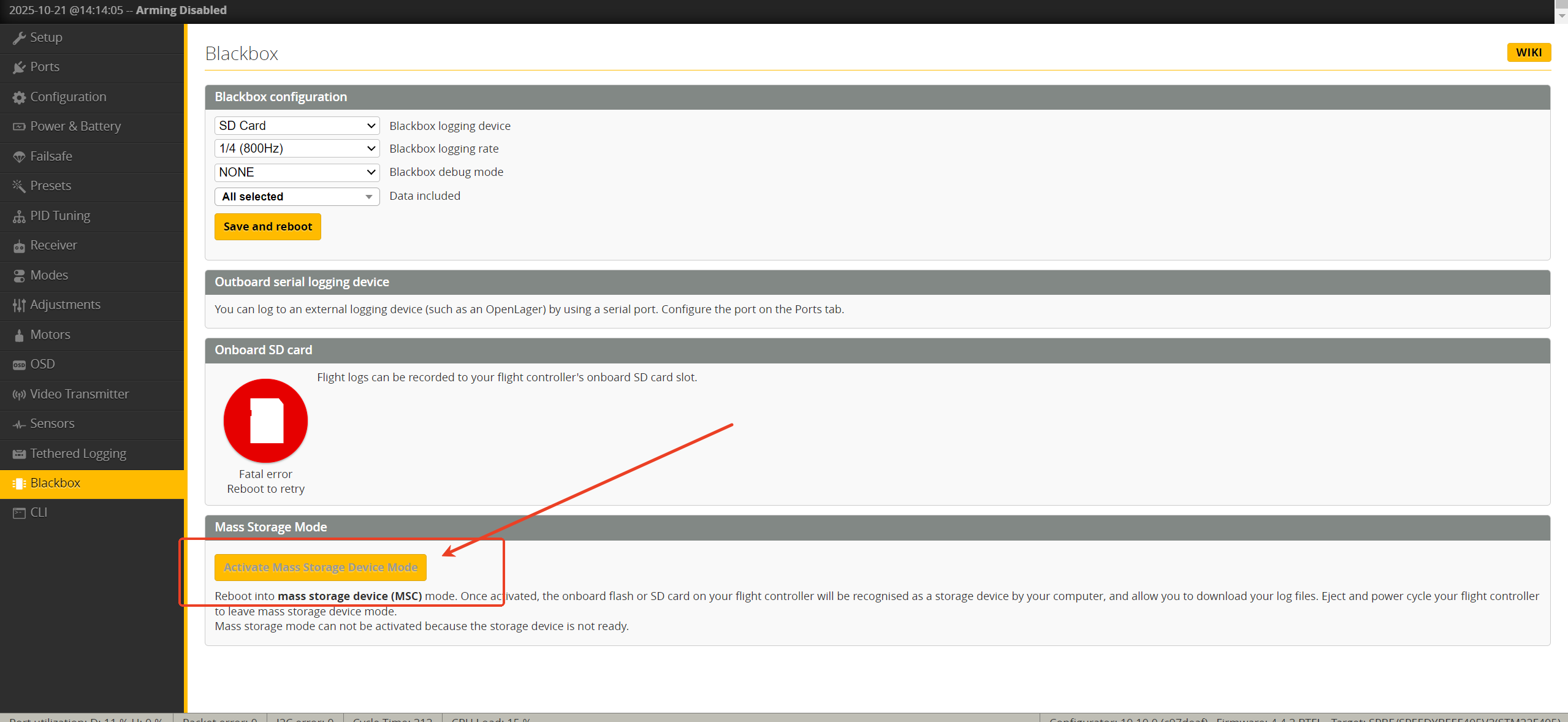

2.Select the Blackbox tab and click Enable Mass Storage Mode.


3.At  this point, a BETAFLIGHT USB drive will appear, and each file represents all the recorded data from one battery flight.


4.If you want to reconnect to the ground station, simply power cycle the flight controller.
