Bee 25 (V1) GPS installing & setting

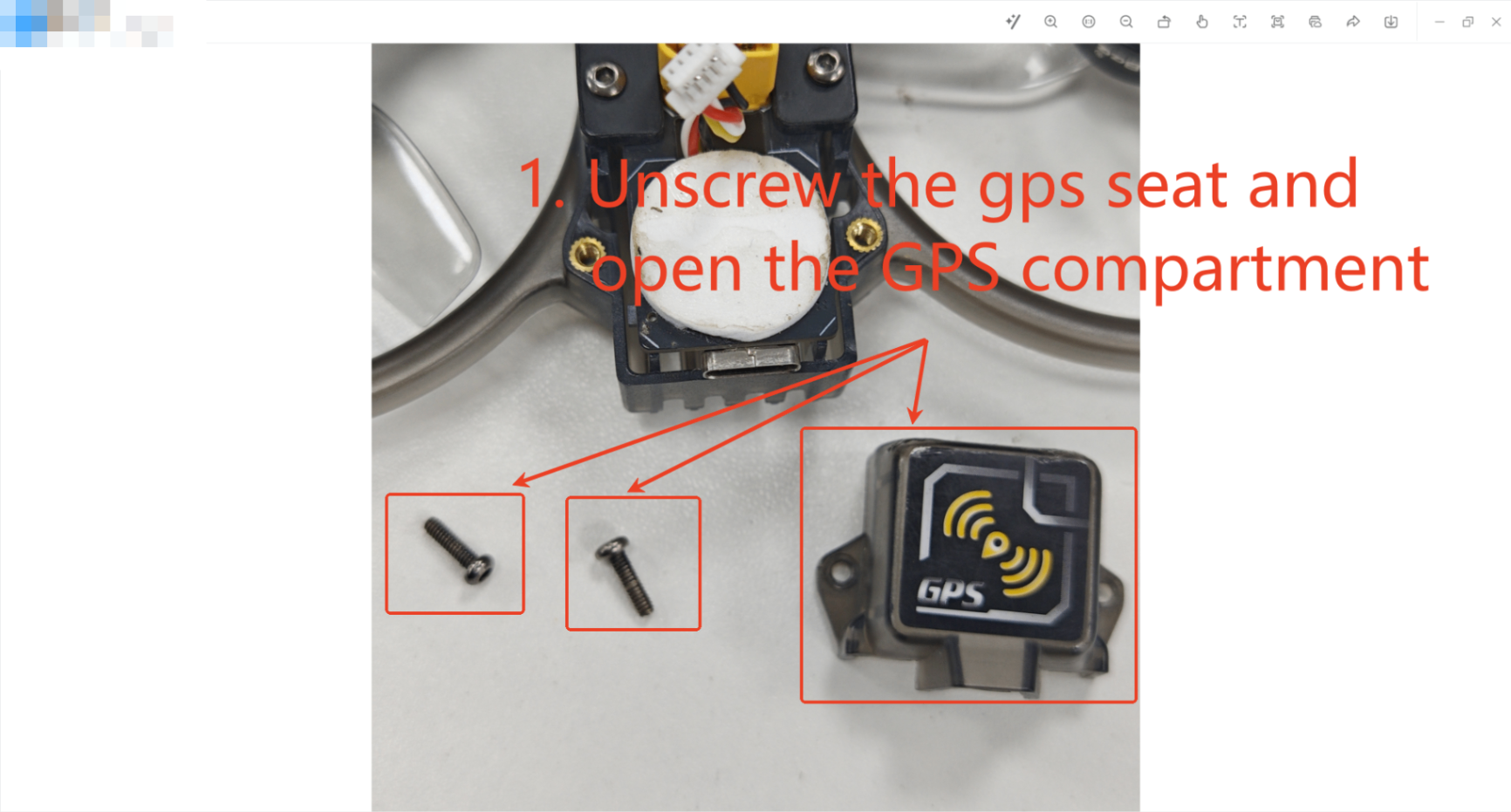

1. Unscrew the GPS seat and open the GPS compartment

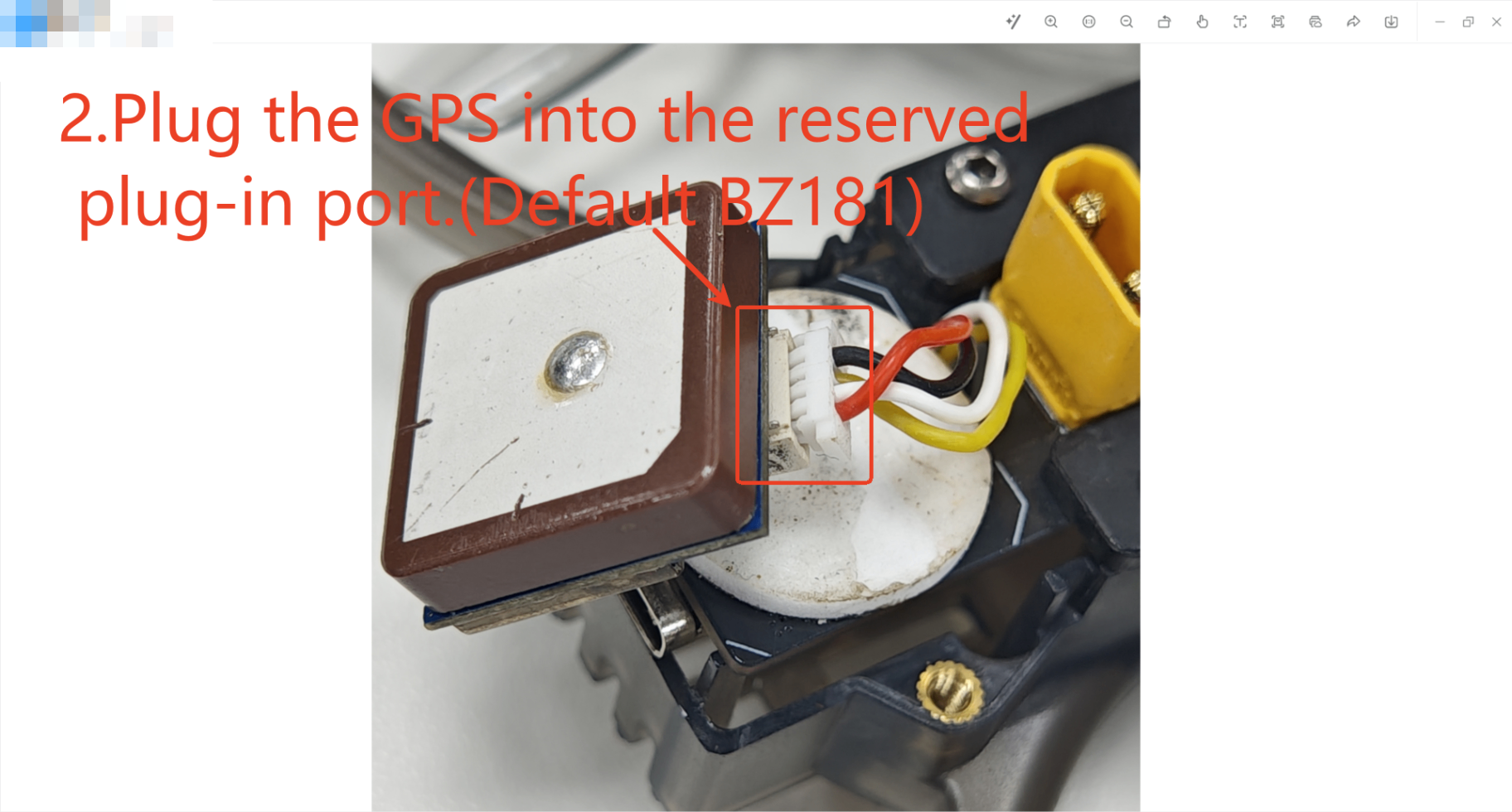

2. Plug the GPS into the reserved plug-in port.(the reserved plug-in port is used for BZ 181 by default, if you use other GPS, please notice the cable sequence).

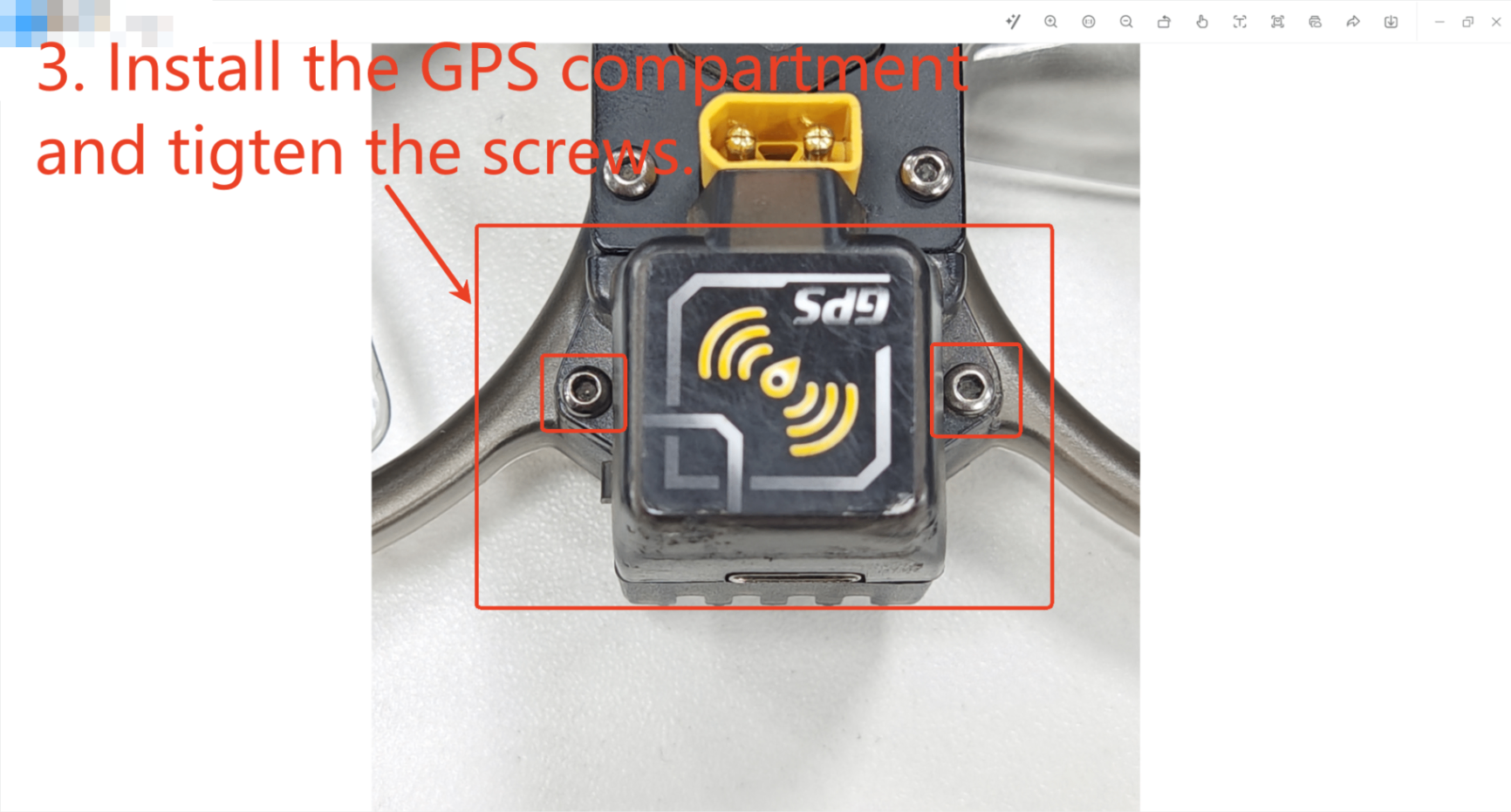

3.Install the GPS compartment and tigten the screws

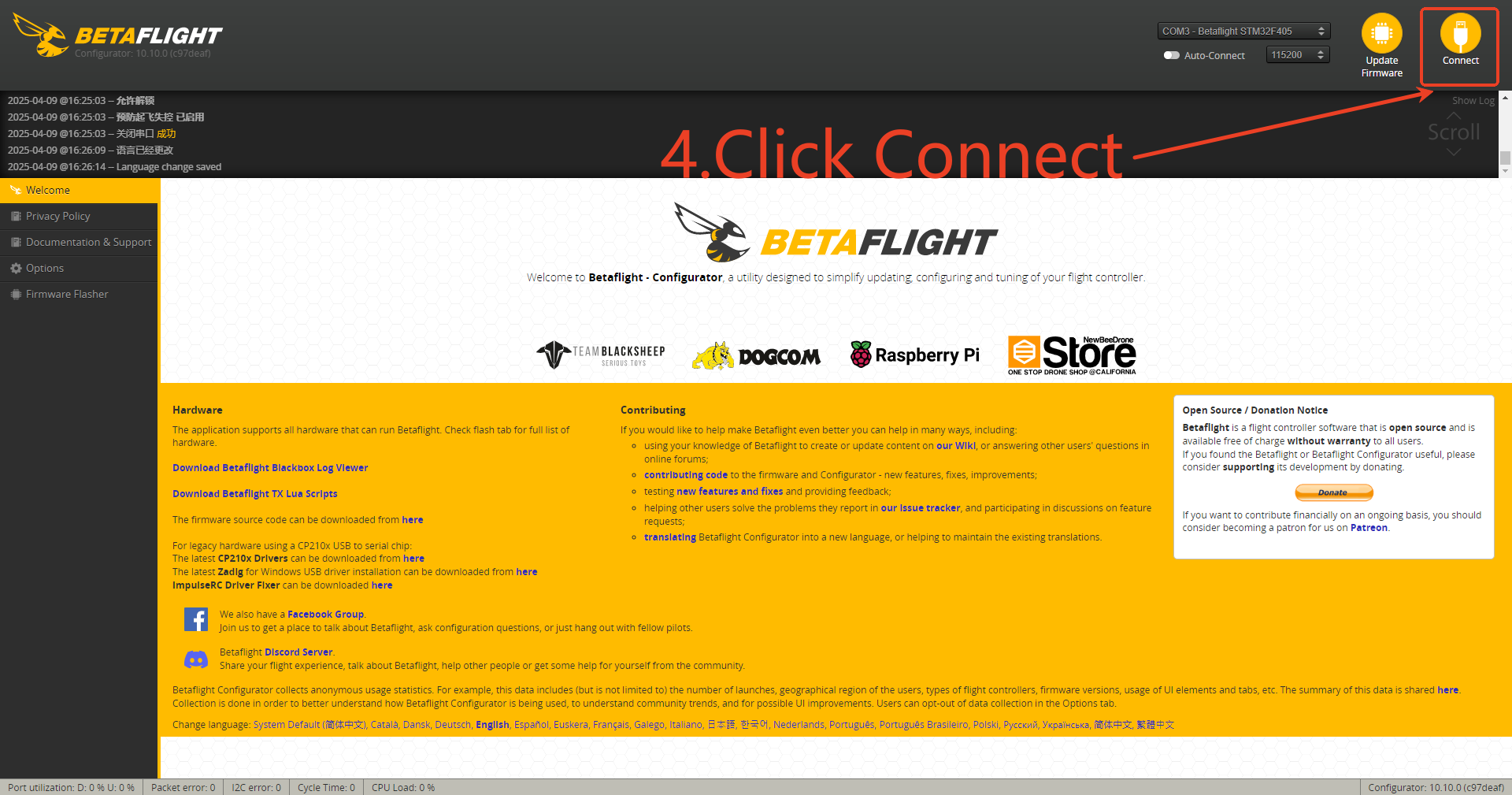

4. Use the USB-A to USB-C data cable to connect the BEE25 to the computer, and open the Betaflight to connect the BEE25.

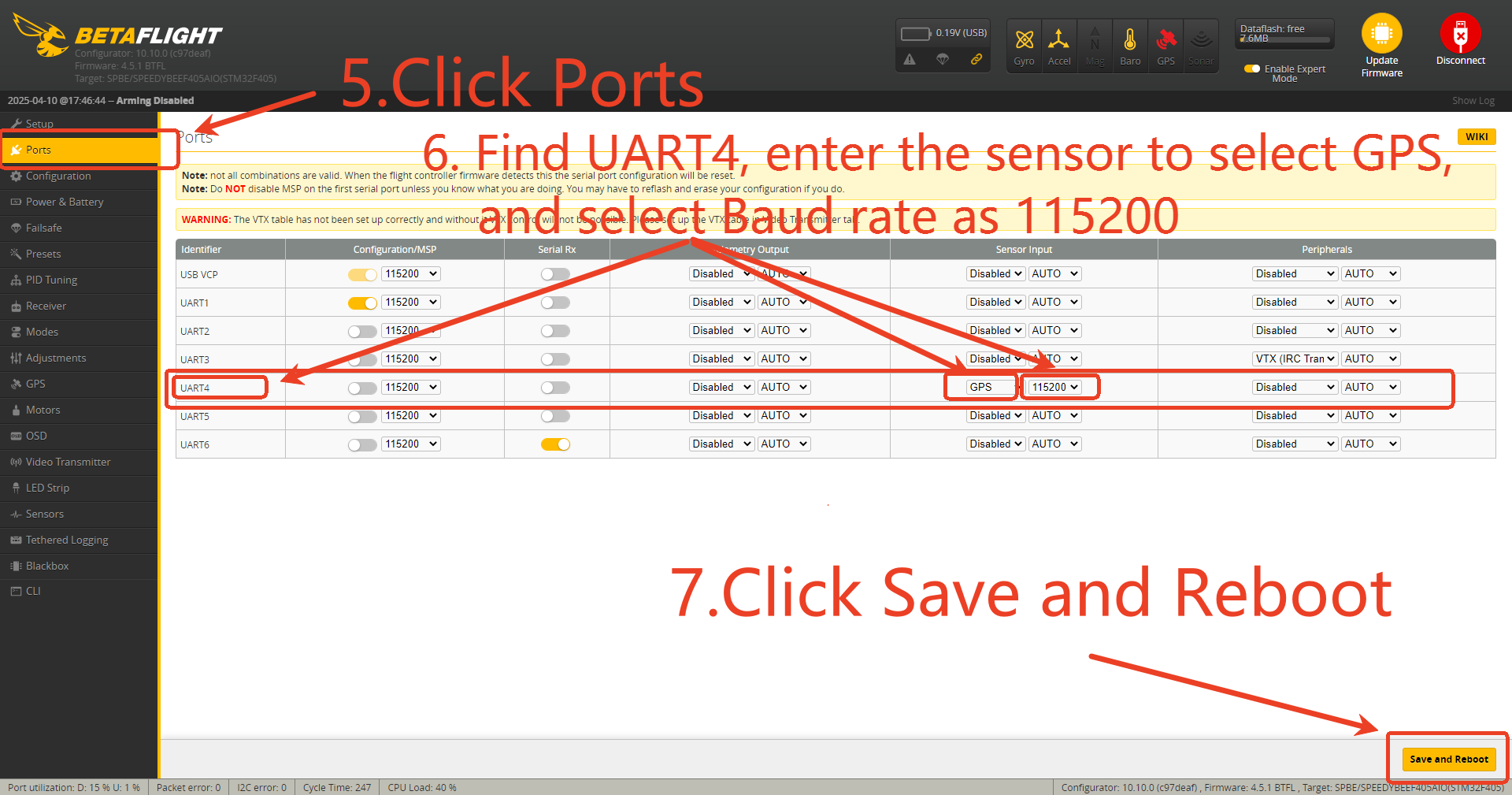

5. Click Ports

6. Find UART4, enter the sensor to select GPS, and select Baud rate as 115200

7. Click Save and Reboot


BEE25 Return-to-Home (RTH) Settings

BEE25 Return-to-Home (RTH) Settings.TXT

You could refer： https://docs.speedybee.cn/fpv/fpv-drones/bee25-drone/how-to-import-factory-configuration-file-for-bee25v1.html
