BEE25 SBUS Receiver Installation & Configuration
5/29/25Less than 1 minute
1. Using an SBUS receiver requires manual soldering.
2. Desolder the pre-installed 4-pin receiver cable, then solder the three wires (black, red, White) from the SBUS receiver to the flight controller.
3.Connect the flight controller to the Betaflight Configurator.

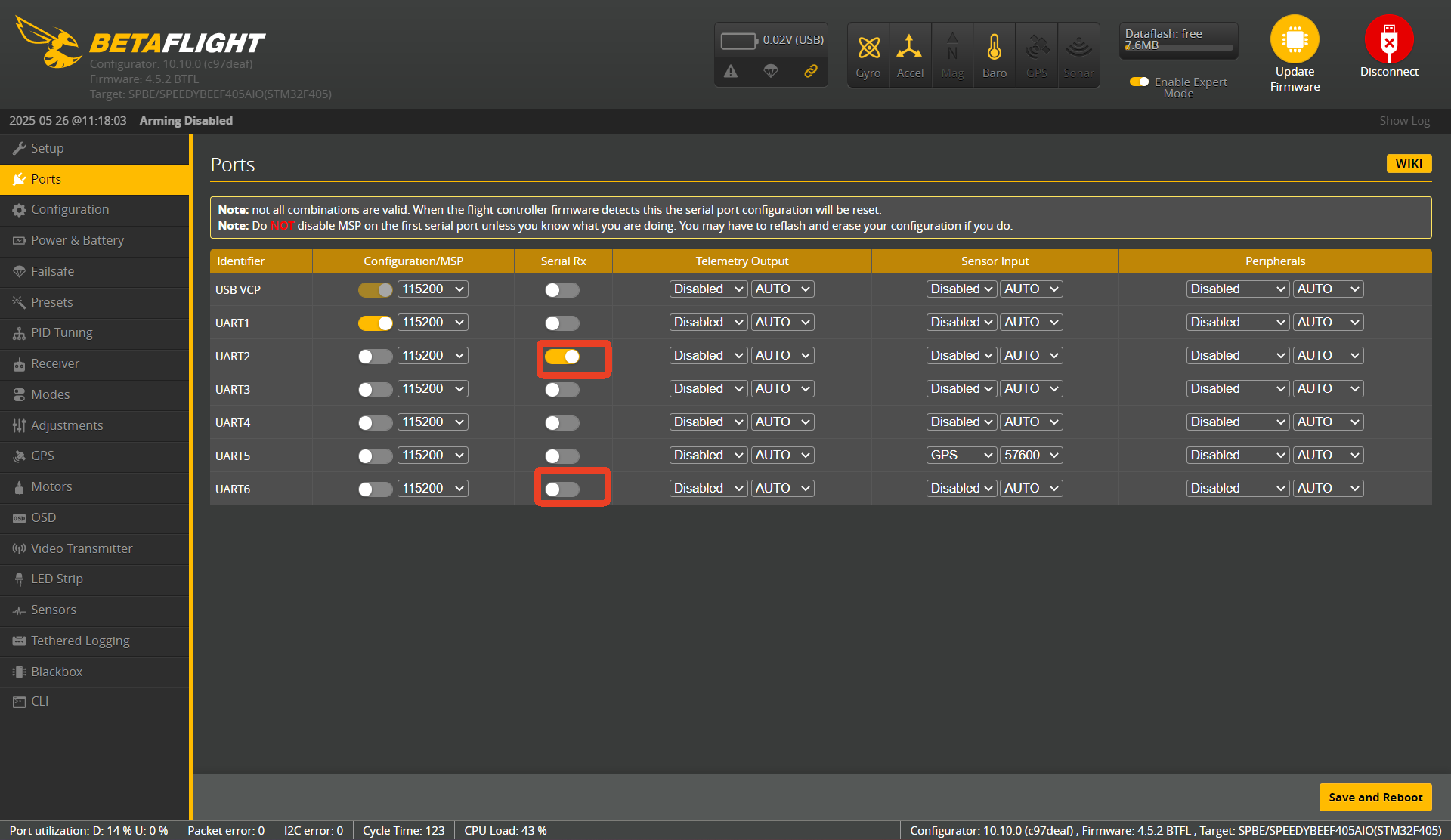

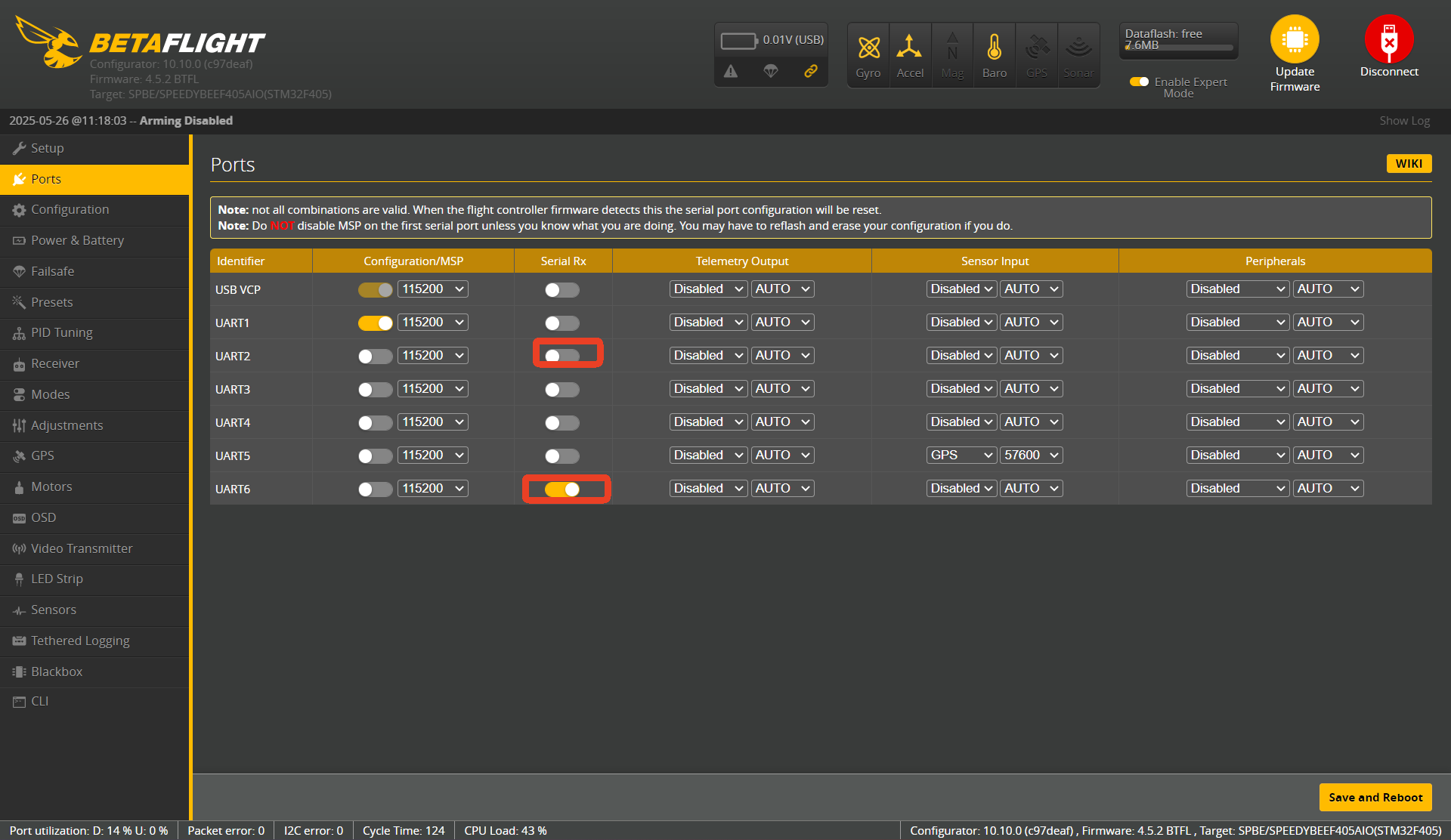

4. Open the “Ports” tab, disable “UART6 Serial Rx”, enable “UART2 RX”, then click “Save and Reboot.”

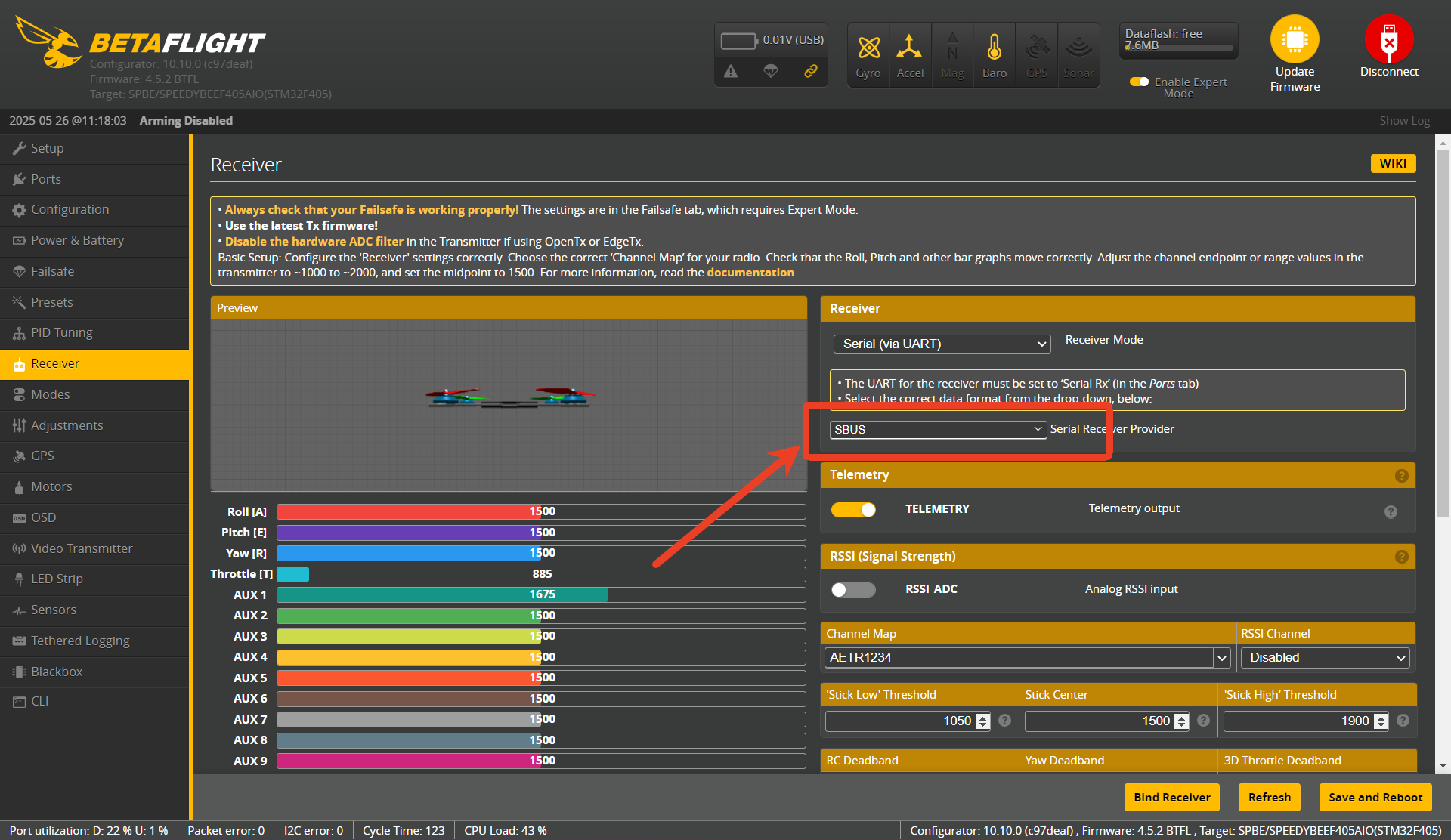

5. Go to the “Receiver” tab and change the protocol from CRSF to SBUS.

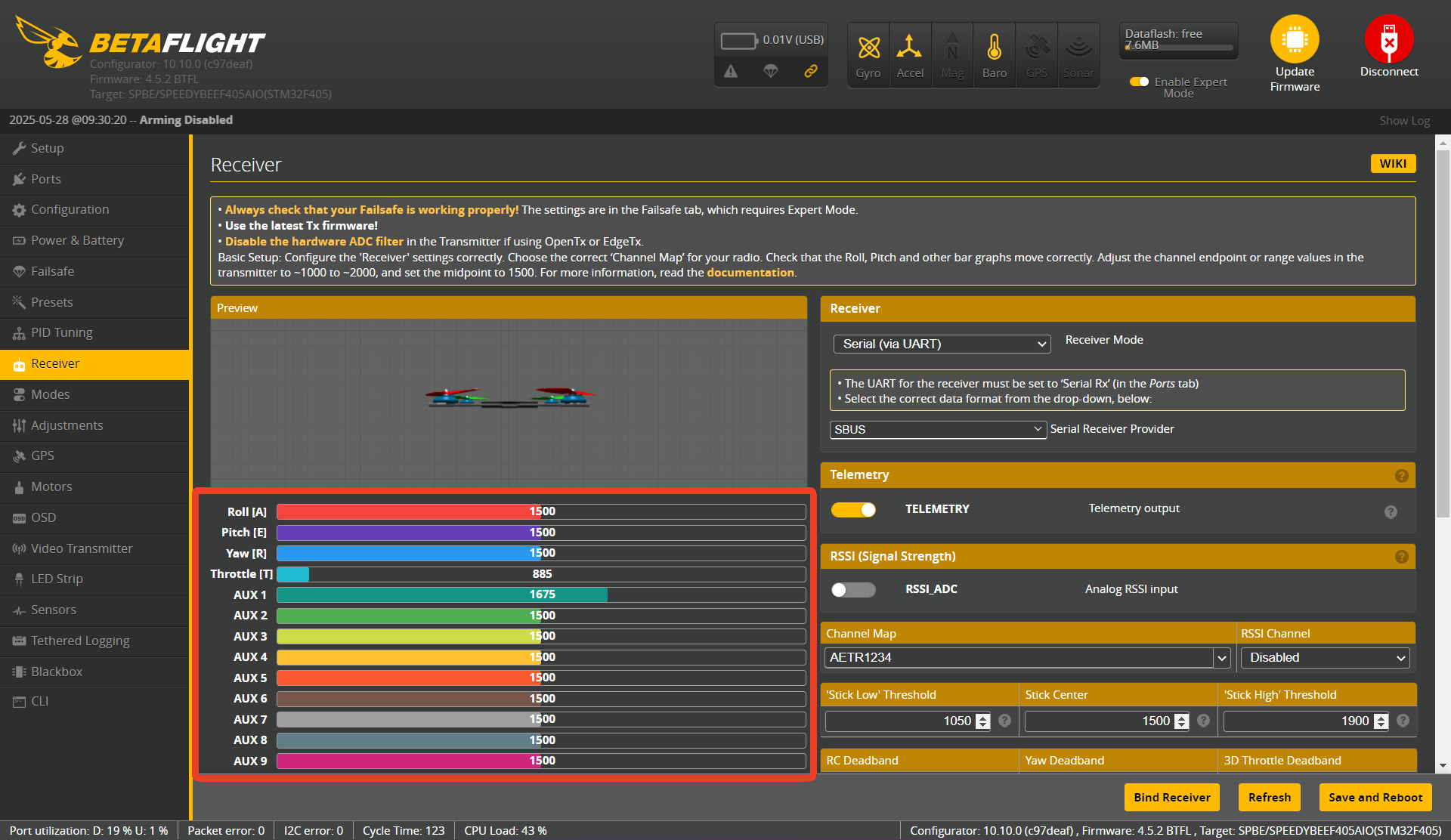

6. Move the transmitter sticks to check if the channel inputs respond.
7. If the channels respond, the installation is successful. Mount the receiver onto the BEE25 bottom plate.
