How to connect a flight controller to individual ESC

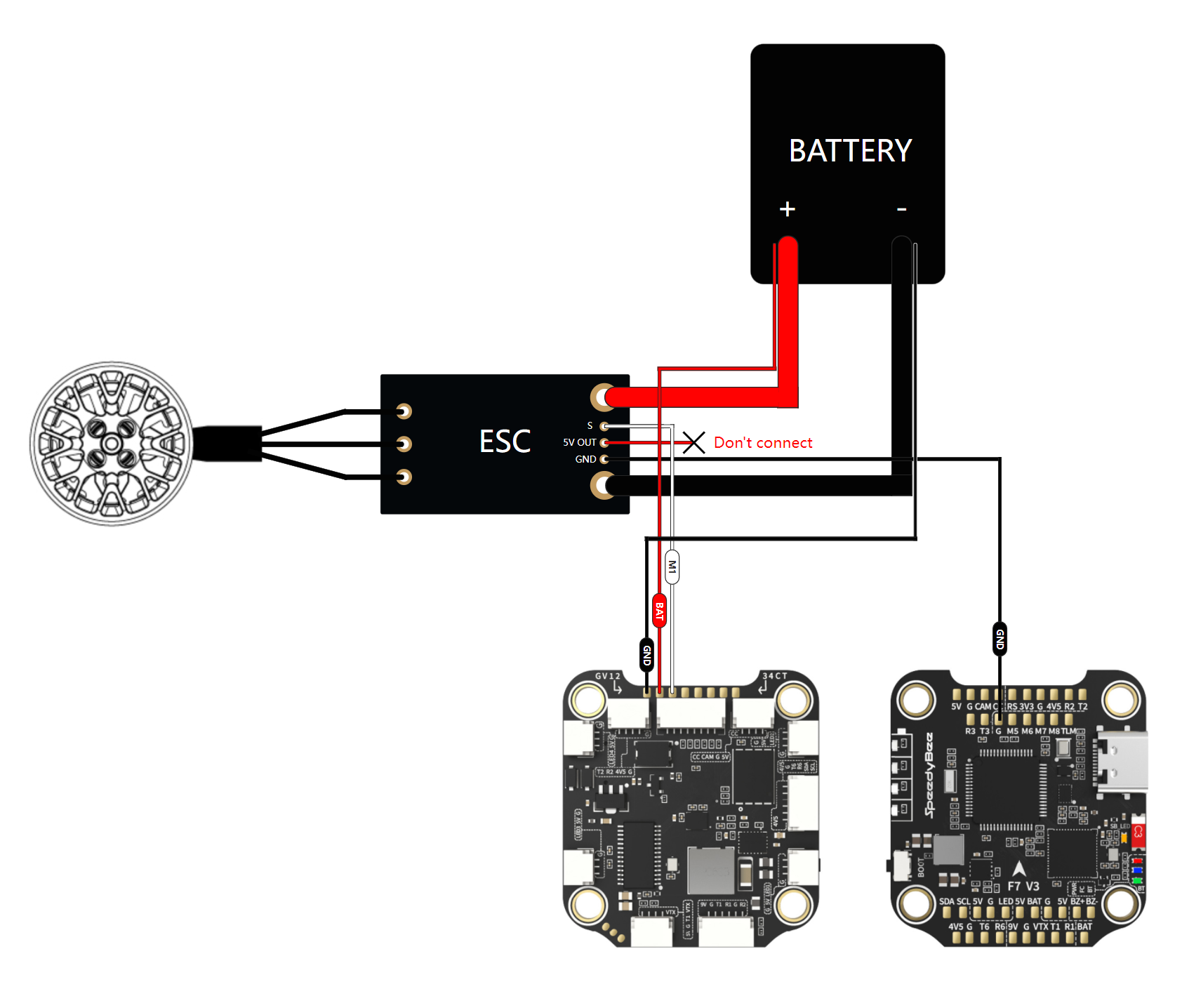

If you need to use individual ESC, you can refer to the wiring diagram below.


Notes:

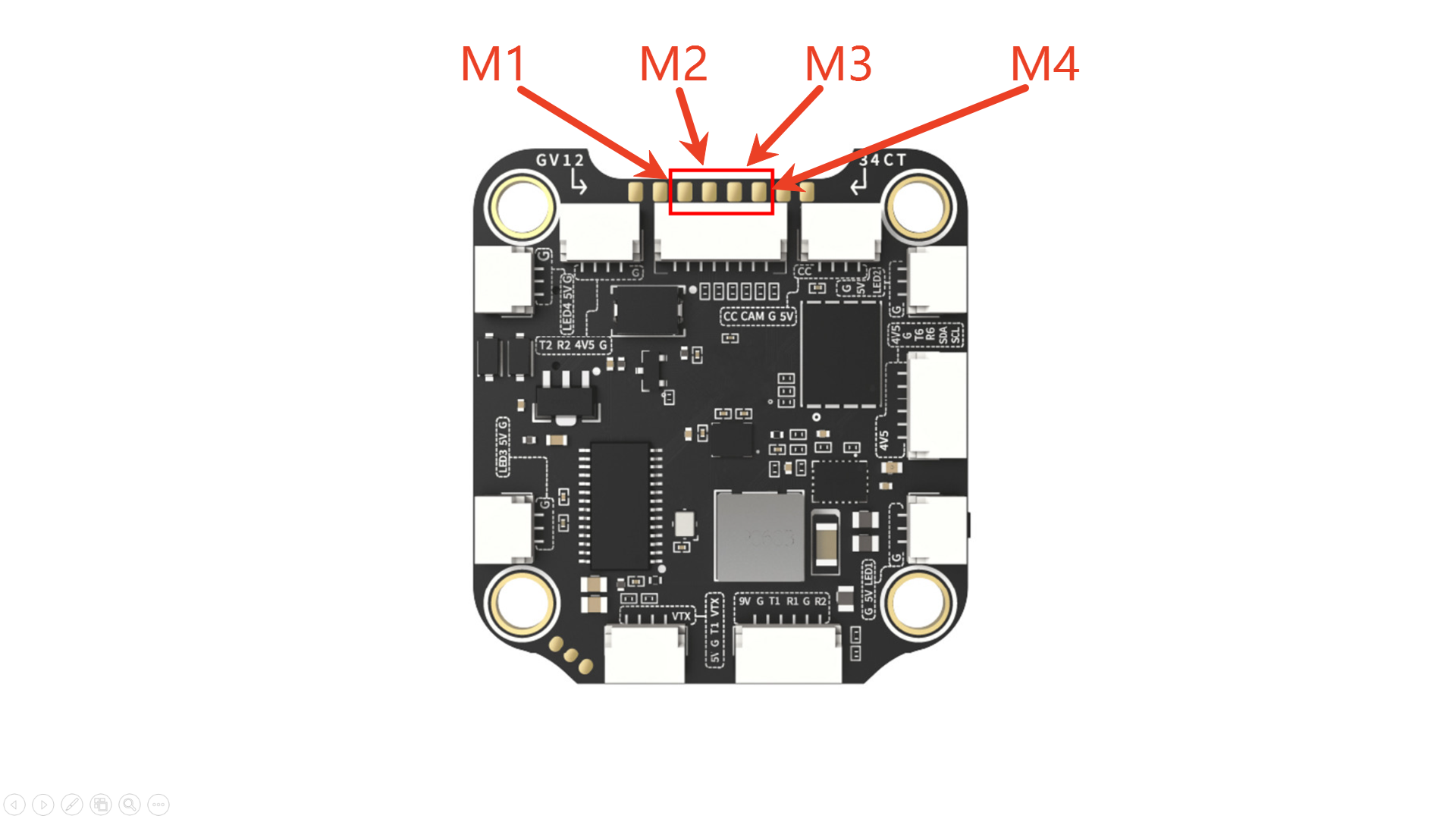

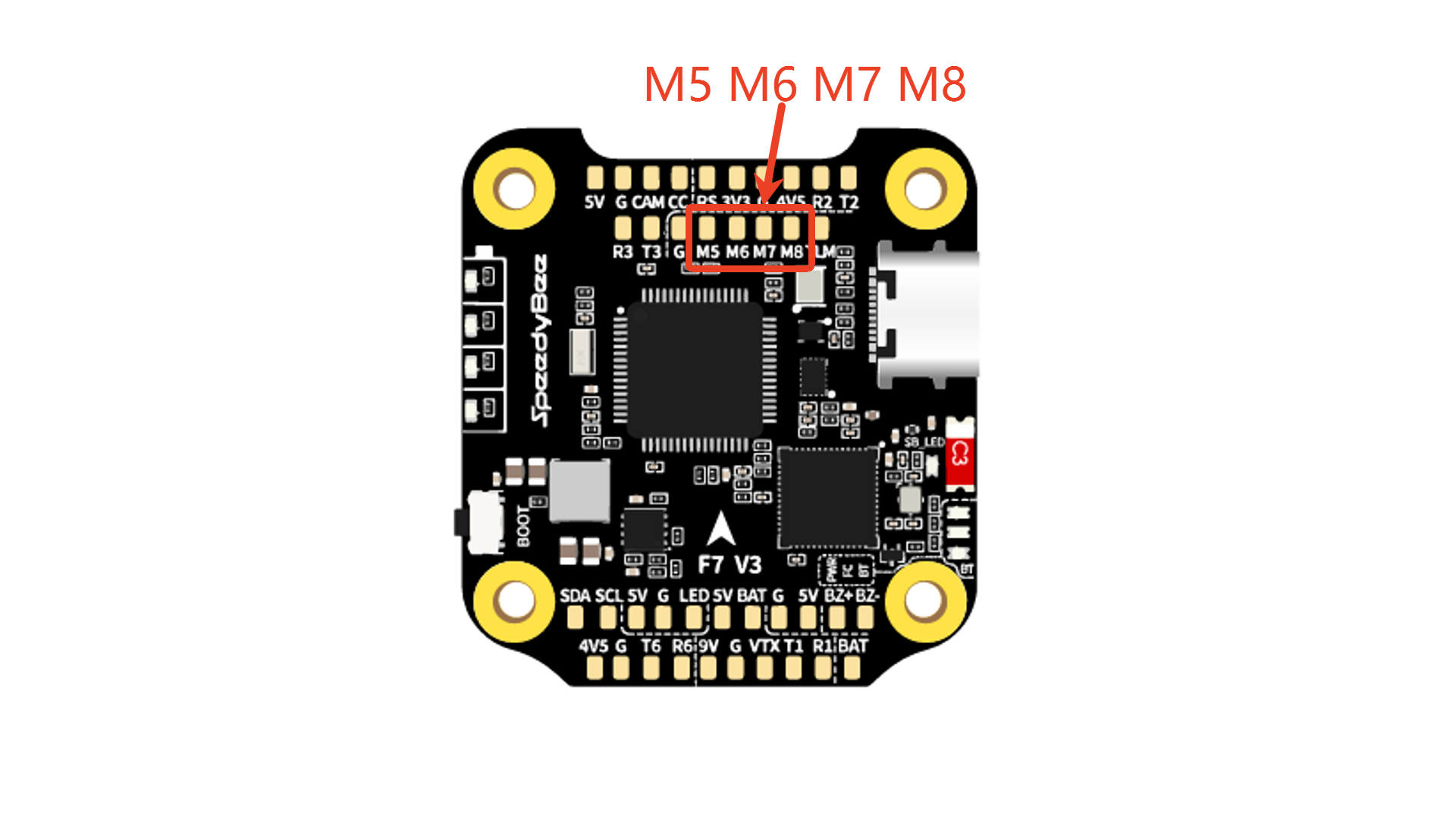

1. The ESC signal wires can be connected to the M1–M8 pads on the flight controller. Up to 8 ESCs are supported (F405 Mini and F7 Mini support only up to 4 ESCs.)

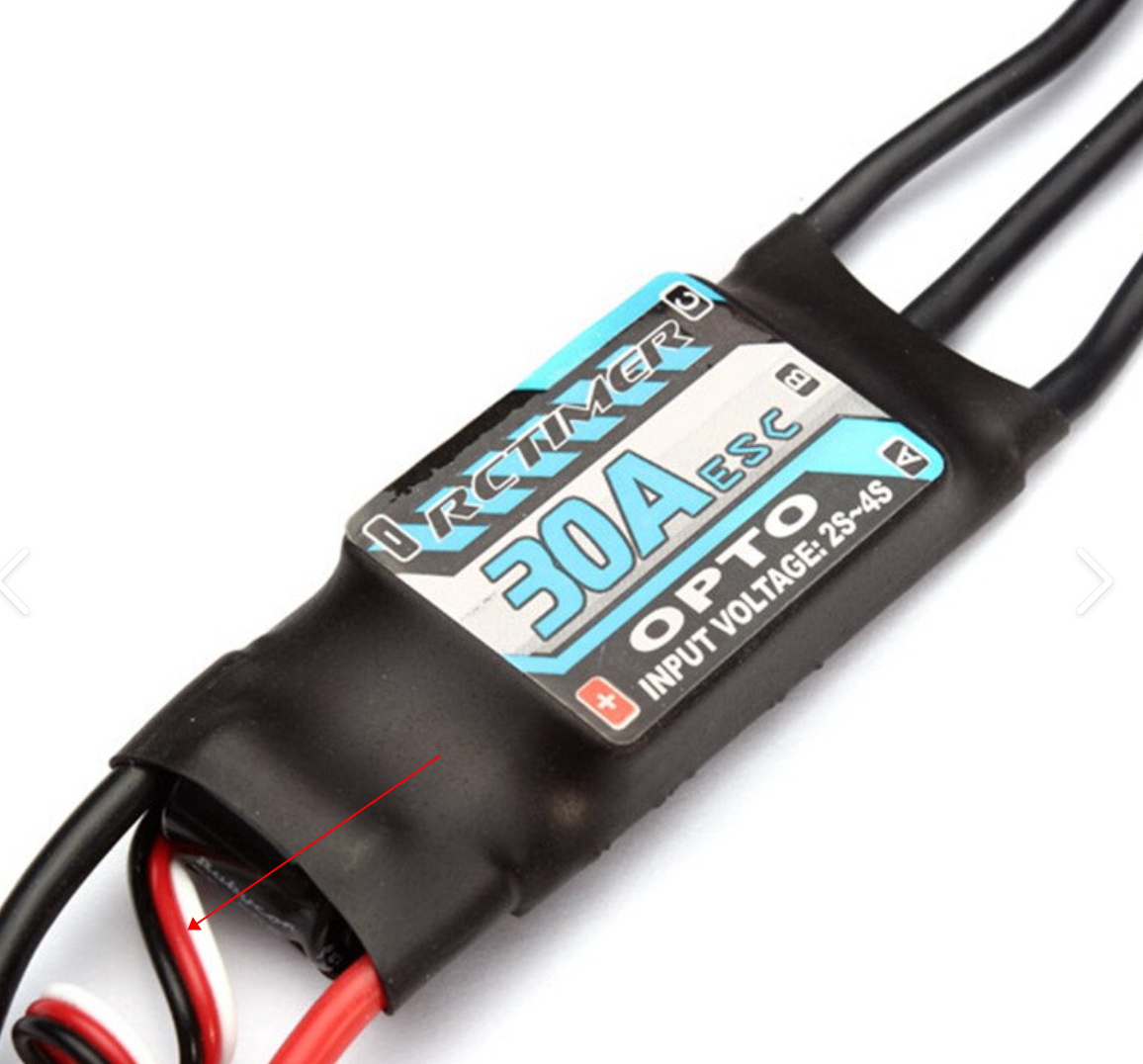

2.Some ESCs come with a BEC , which can power servos, receivers, and other devices. These ESCs typically have three output wires .


⚠️ When connecting to a flight controller, do NOT connect the ESC's BEC output wire to the flight controller, as this could damage either the ESC or the flight controller.
