How to use a servo with the F405 AIO flight controller in INAV
How to use a servo with the F405 AIO flight controller in INAV
1，Wiring.

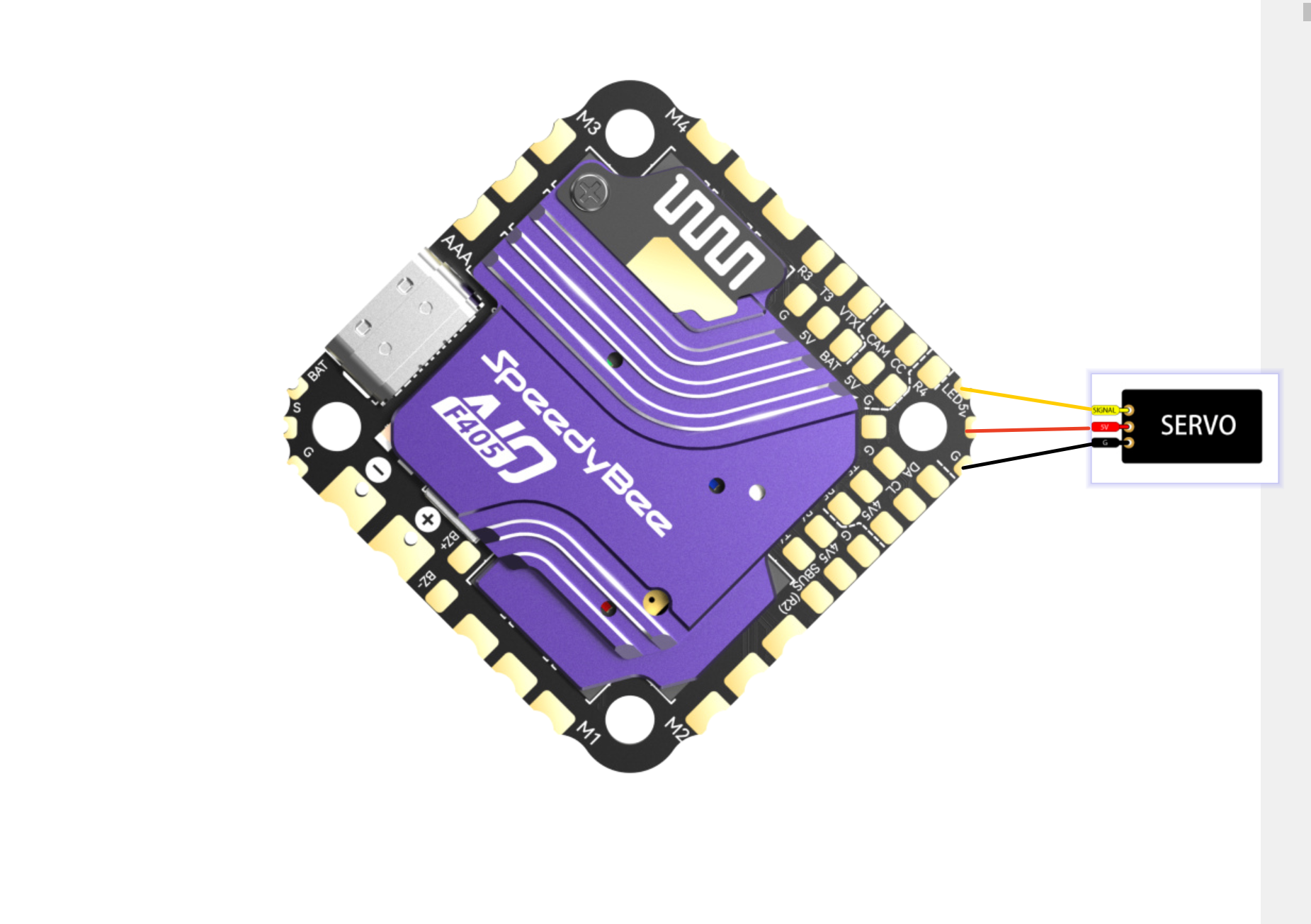

（1）Please connect the servo to the LED pad for use.
Please note that the 5V BEC on the flight controller supports a maximum output of 5V 2A. Make sure the servo's power consumption does not exceed the BEC's output capacity.
2，Configuration.
（1）You need to flash the INAV firmware (the default Betaflight firmware cannot be used with the INAV Configurator).

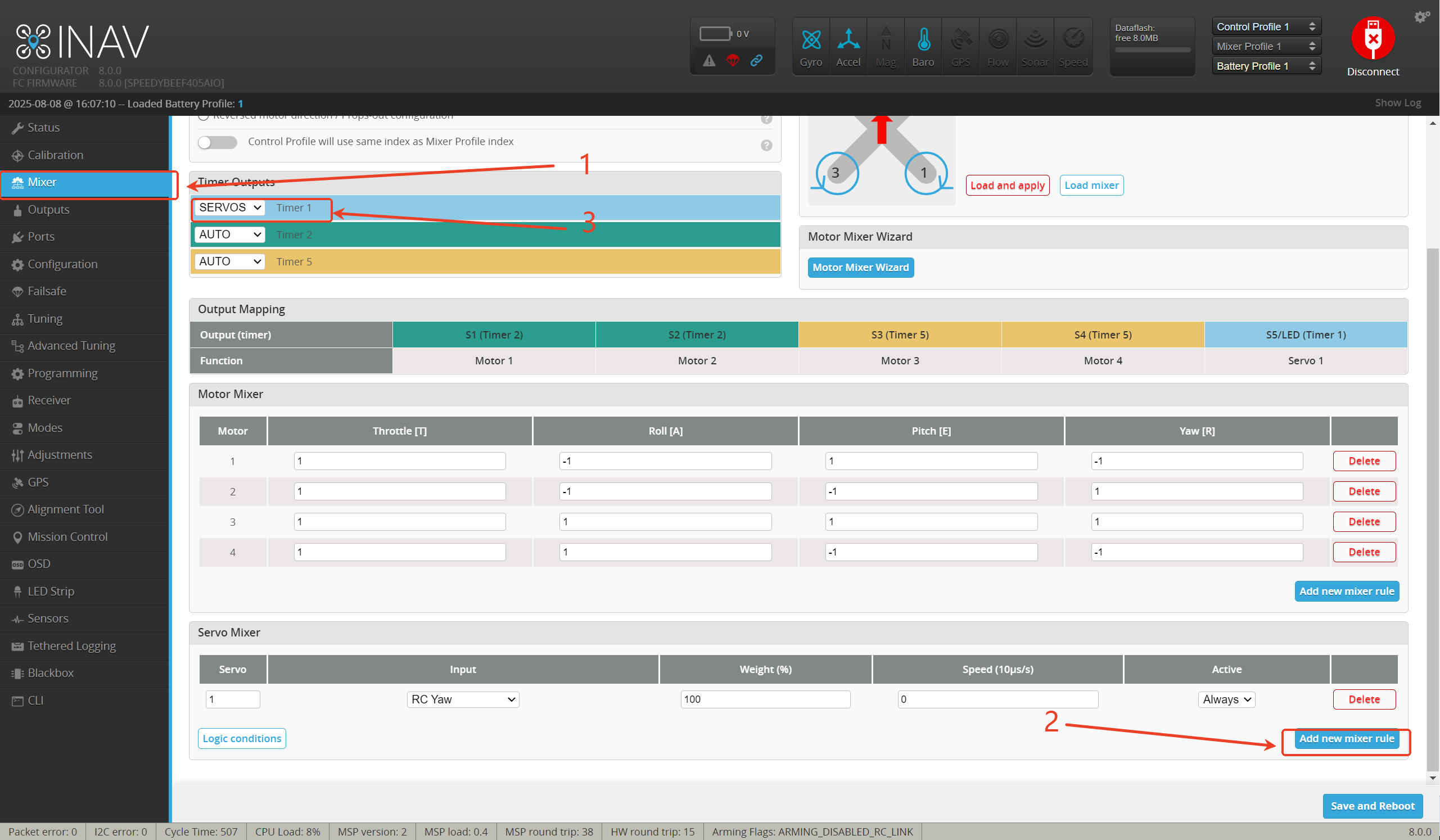

（2）Open the Mixer tab in INAV.
（3）Select "Add new Mixer Rule" (you can only add one rule).
（4）If you see "Servo 1" in the Output Mapping, it means the servo has been successfully added.

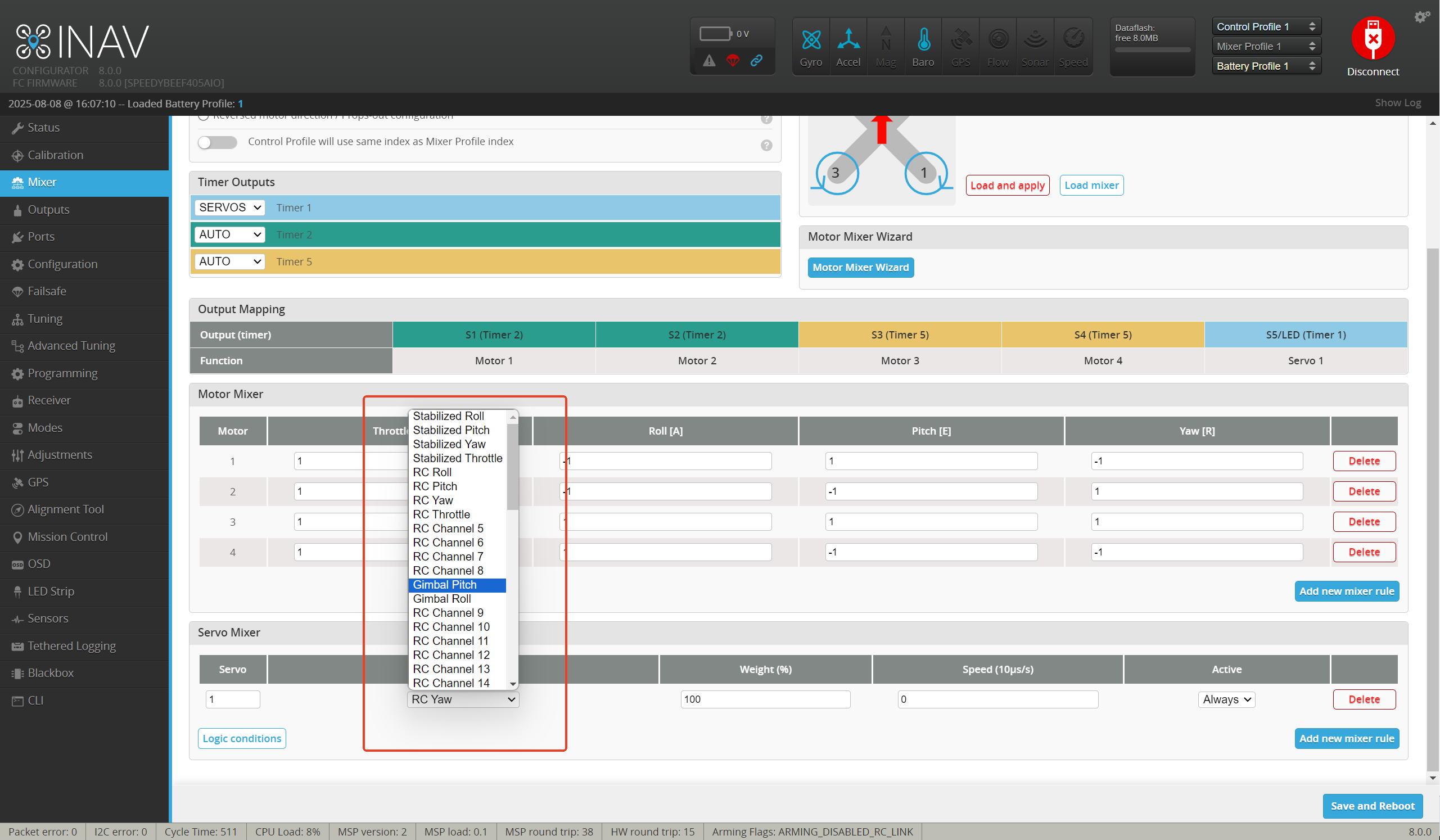

（5）Set the channel you want to use to control the servo.
3，Open the Output page to check if the servo is working properly.

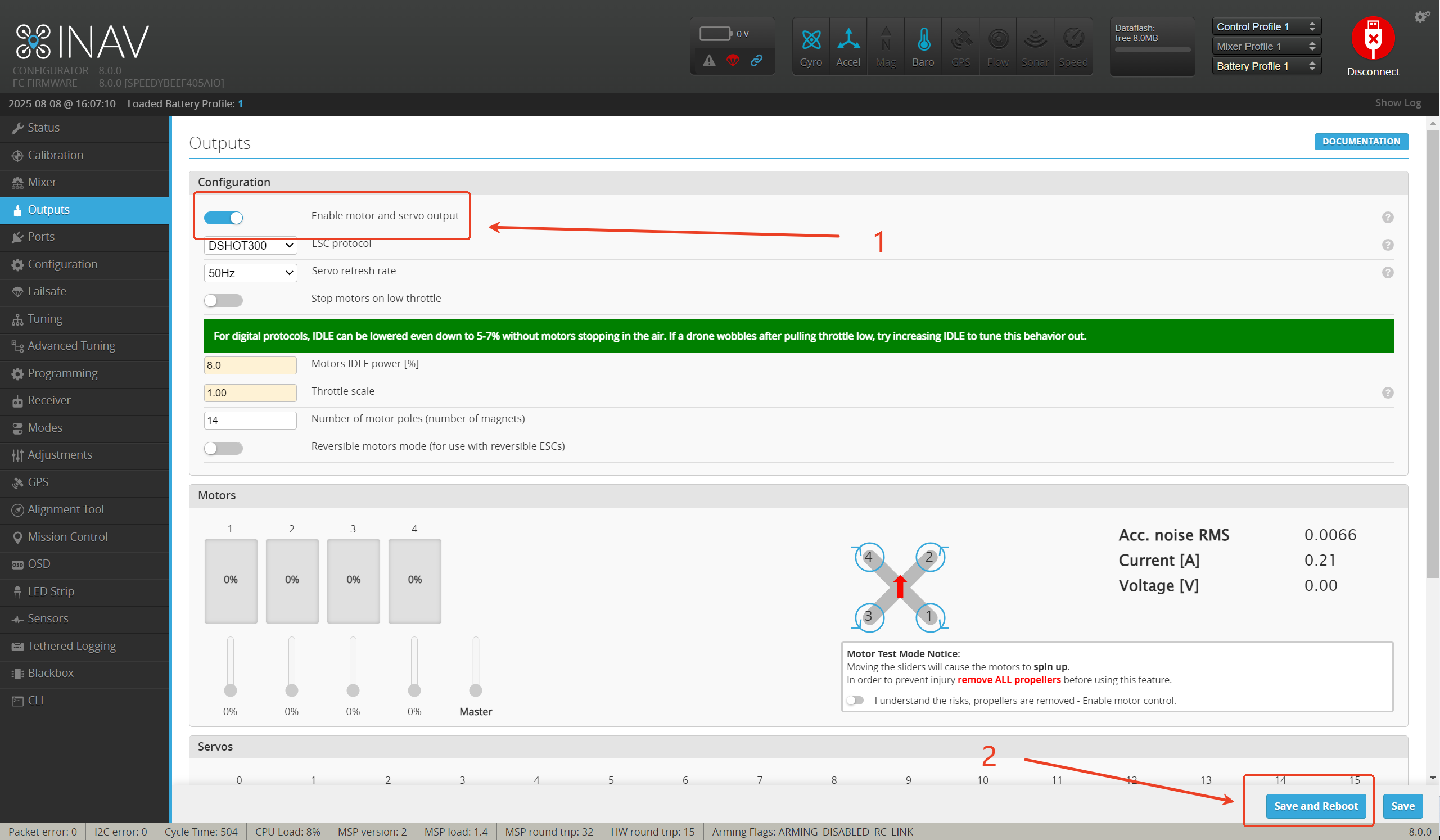

（1）Enable motor and servo outputs.

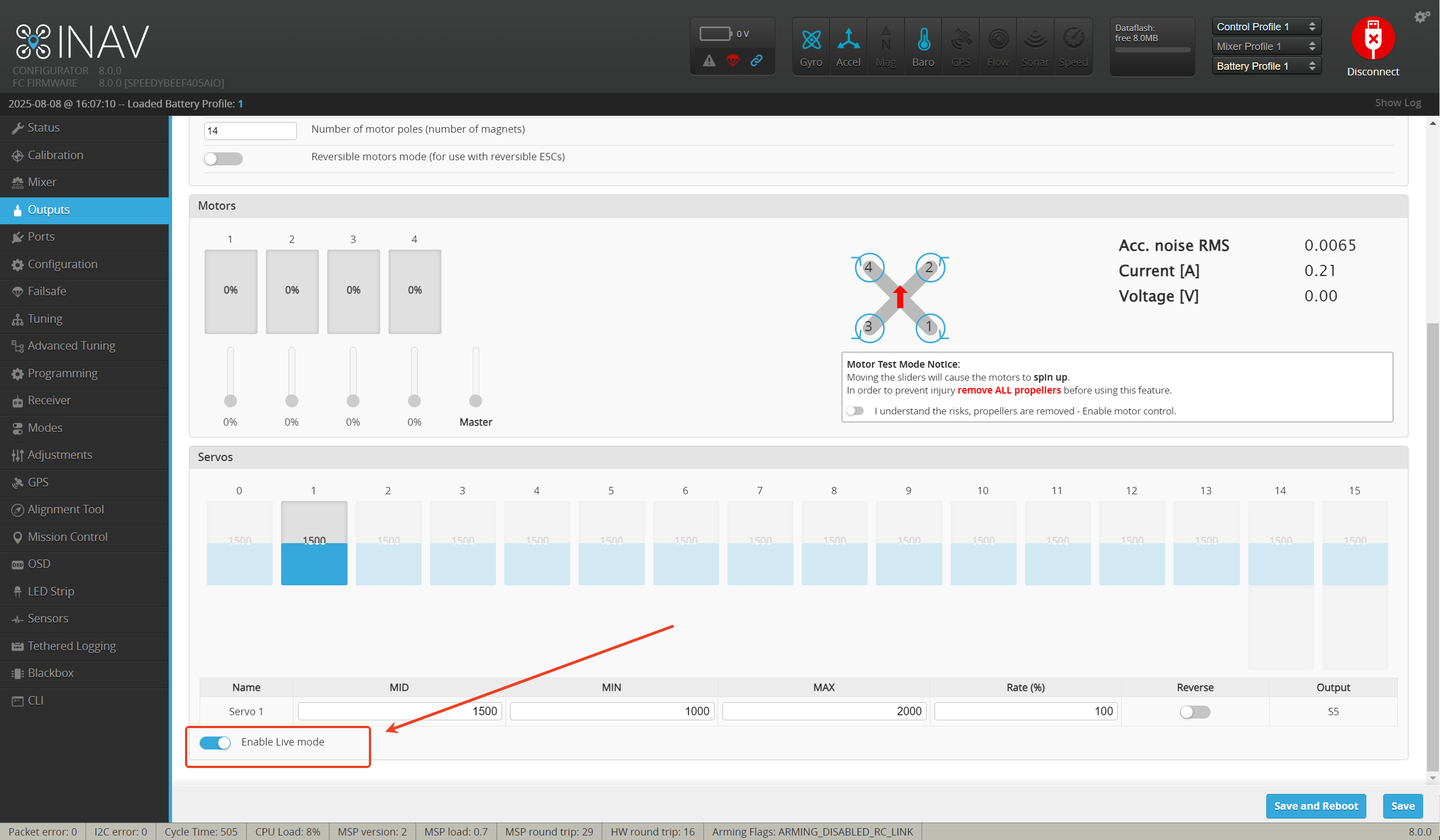

（2）Enable Live Mode to check if the servo is working properly.
After completing the above settings, you can control the servo's movement.
